Joint Sizes with * have 3D .DWF files available.
BIM files are also available for these products in our BIM Library.
Please consult EMSEAL for updates to product configuration and other assembly components.

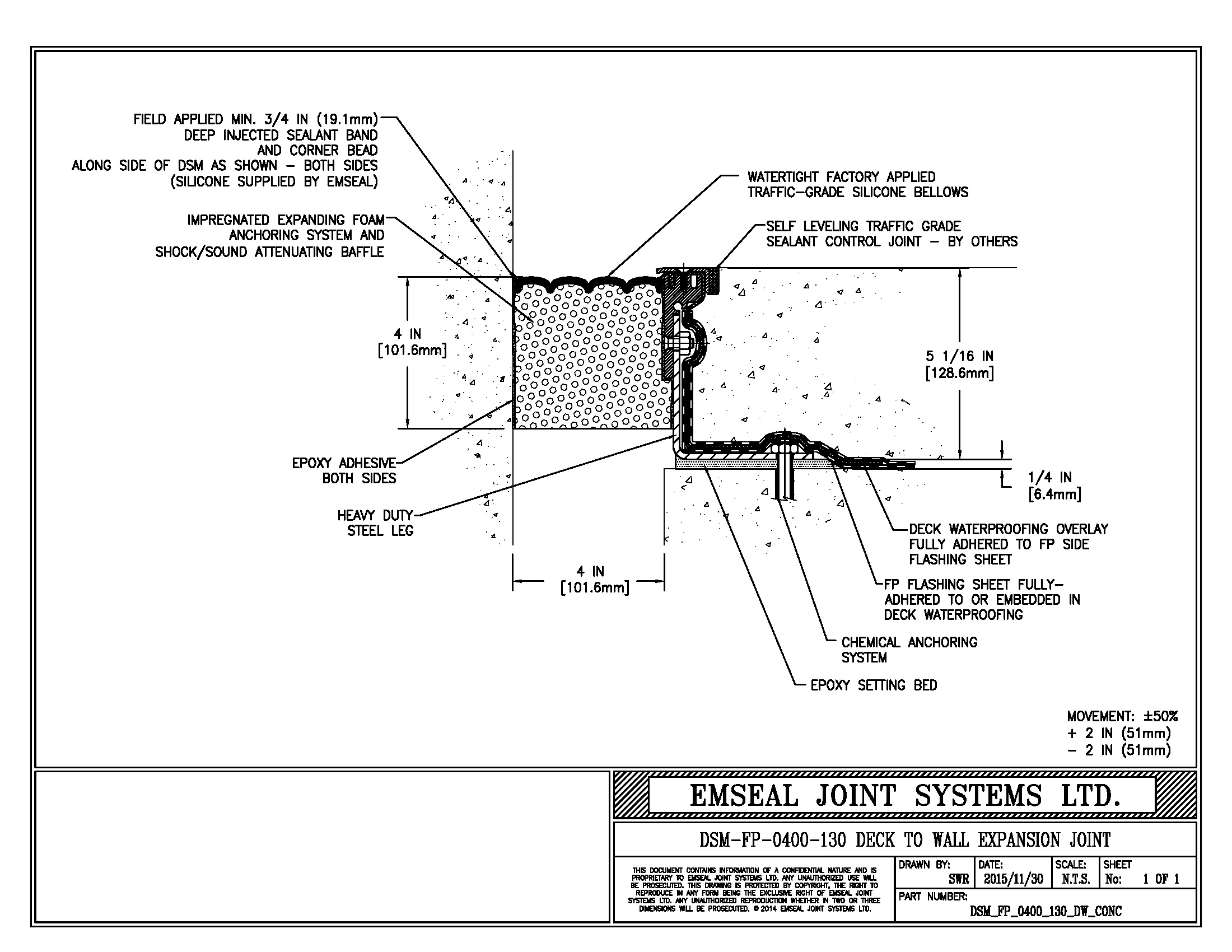

DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 4 inch | 100mm
DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 4 inch | 100mm
DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 3 3/4 inch | 95mm

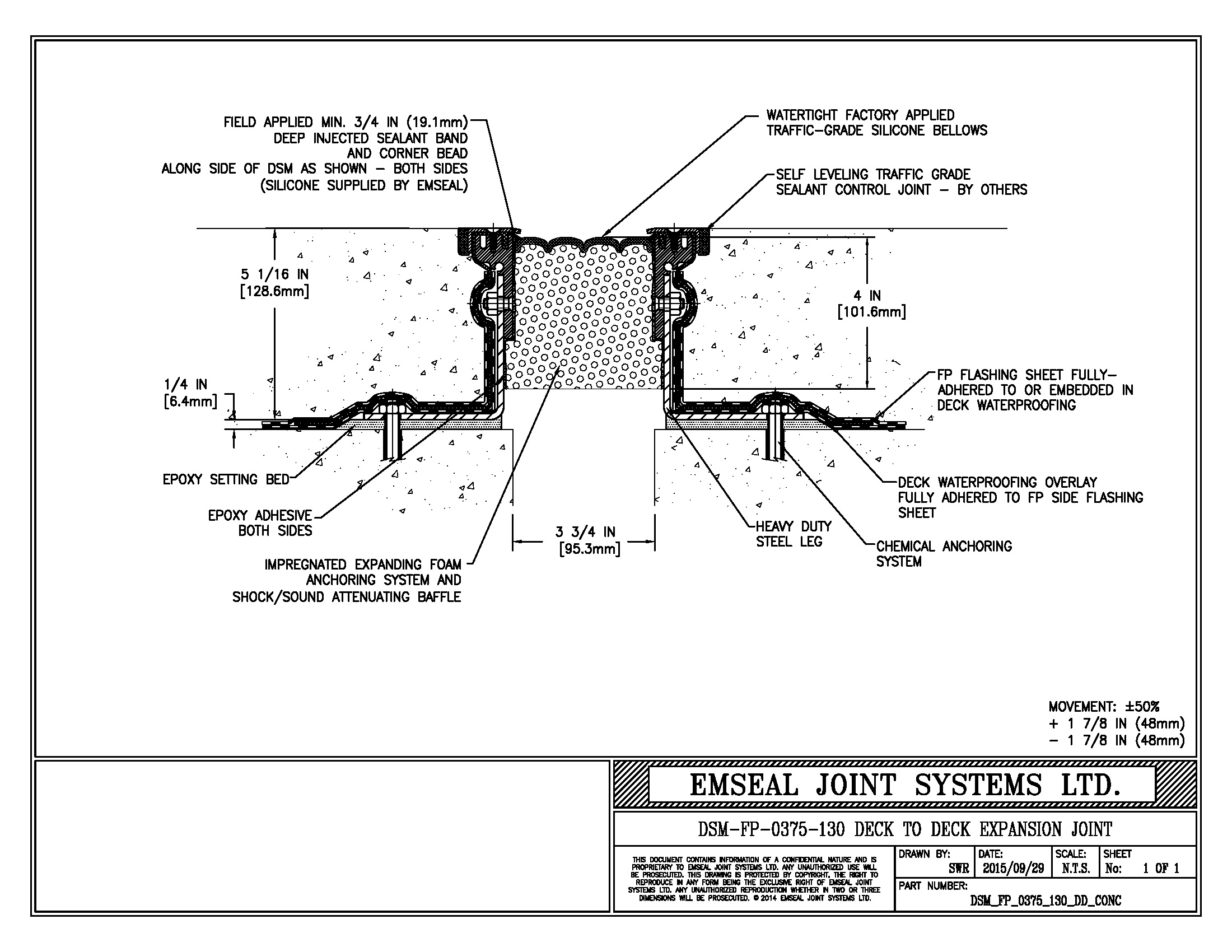

DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 3 3/4 inch | 95mm

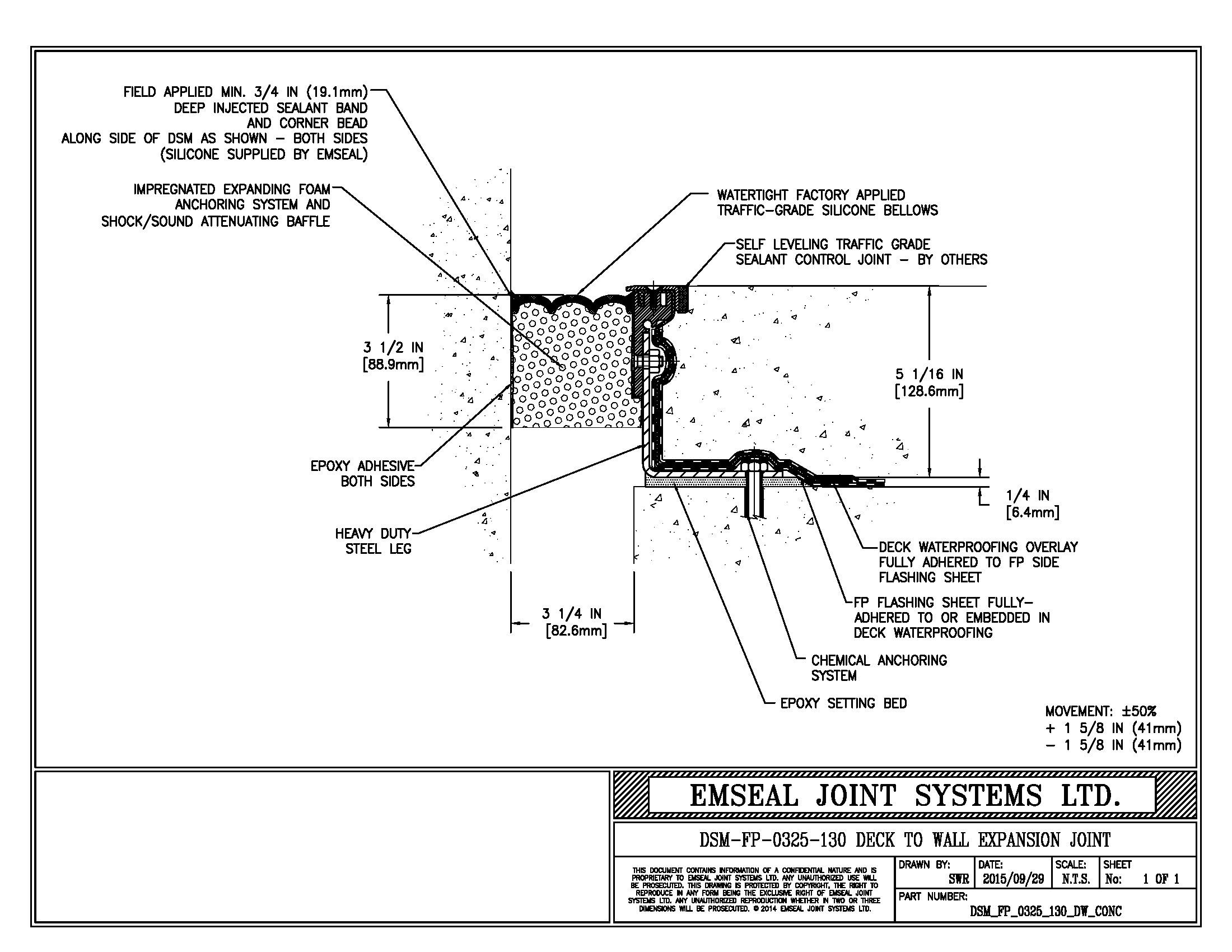

DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 3 1/2 inch | 90mm

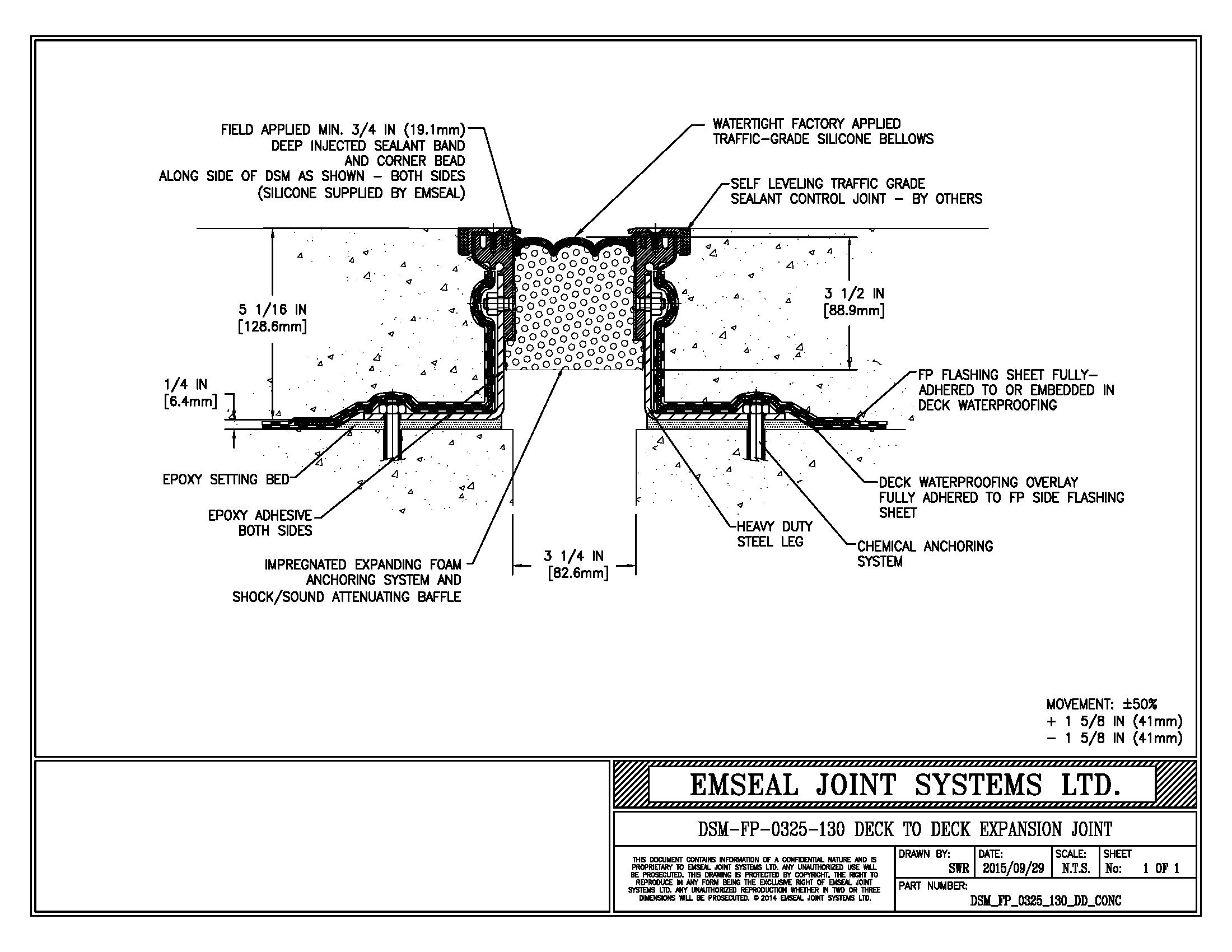

DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 3 1/2 inch | 90mm

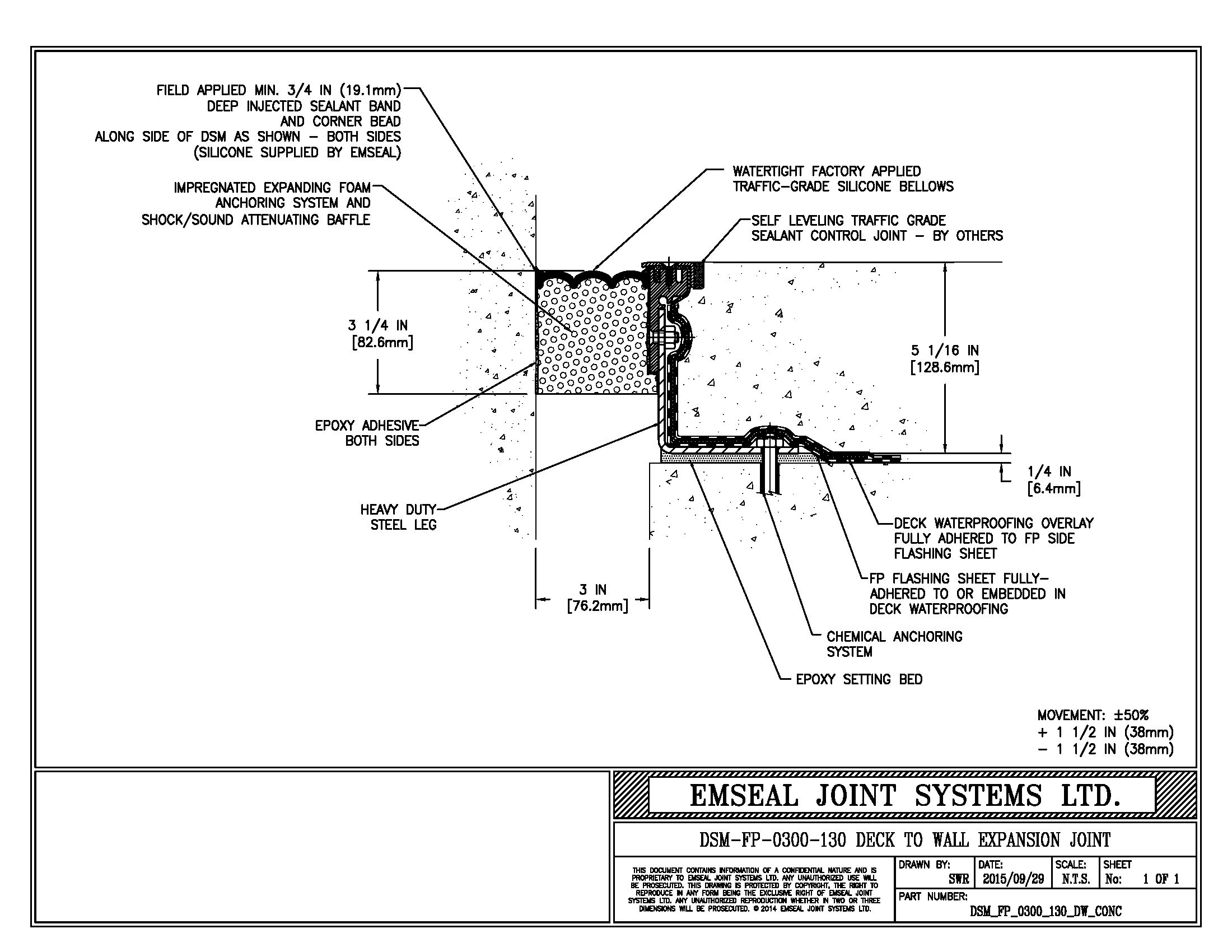

DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 3 1/4 inch | 85mm
DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 3 1/4 inch | 85mm
DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 3 inch | 75mm
DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 3 inch | 75mm

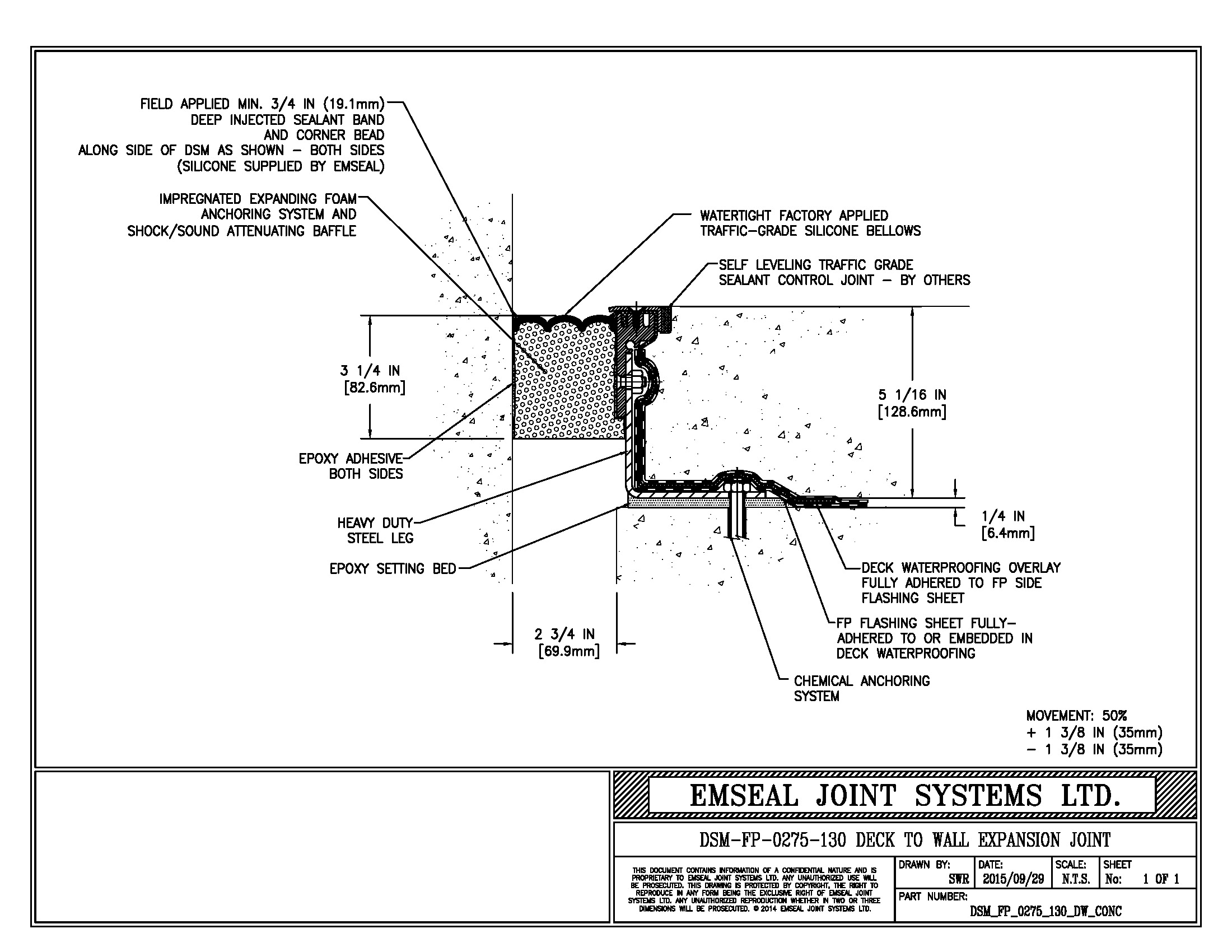

DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 2 3/4 inch | 70mm

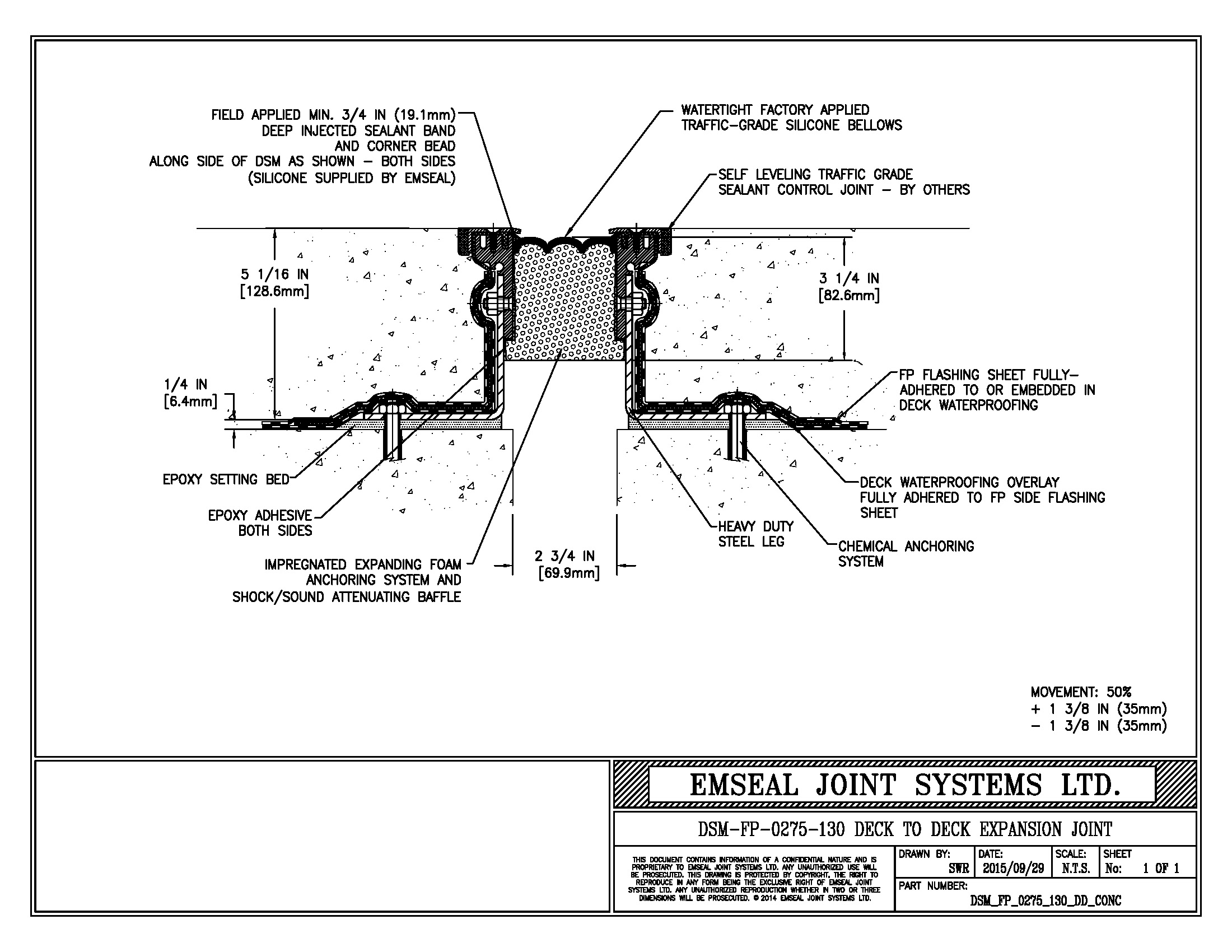

DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 2 3/4 inch | 70mm

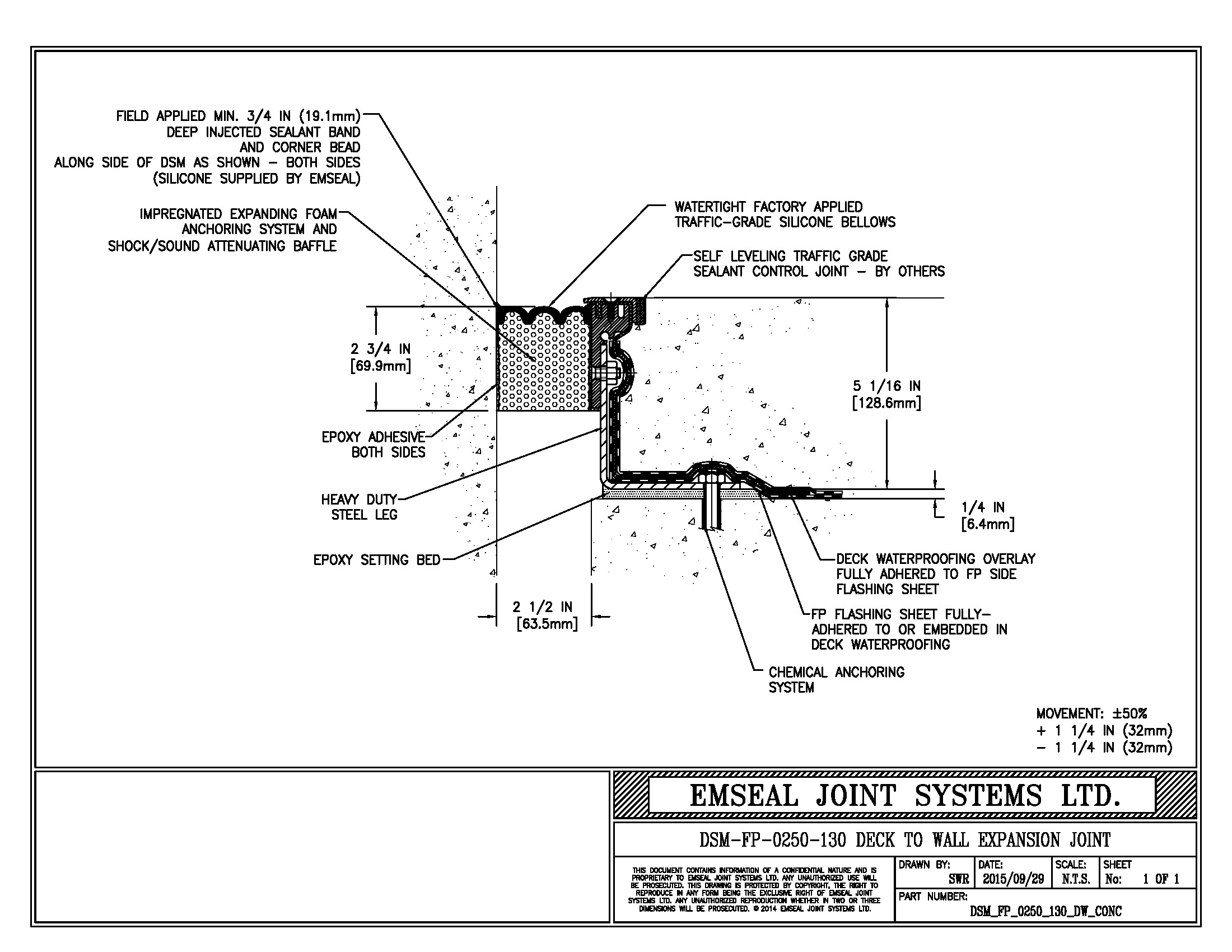

DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 2 1/2 inch | 65mm

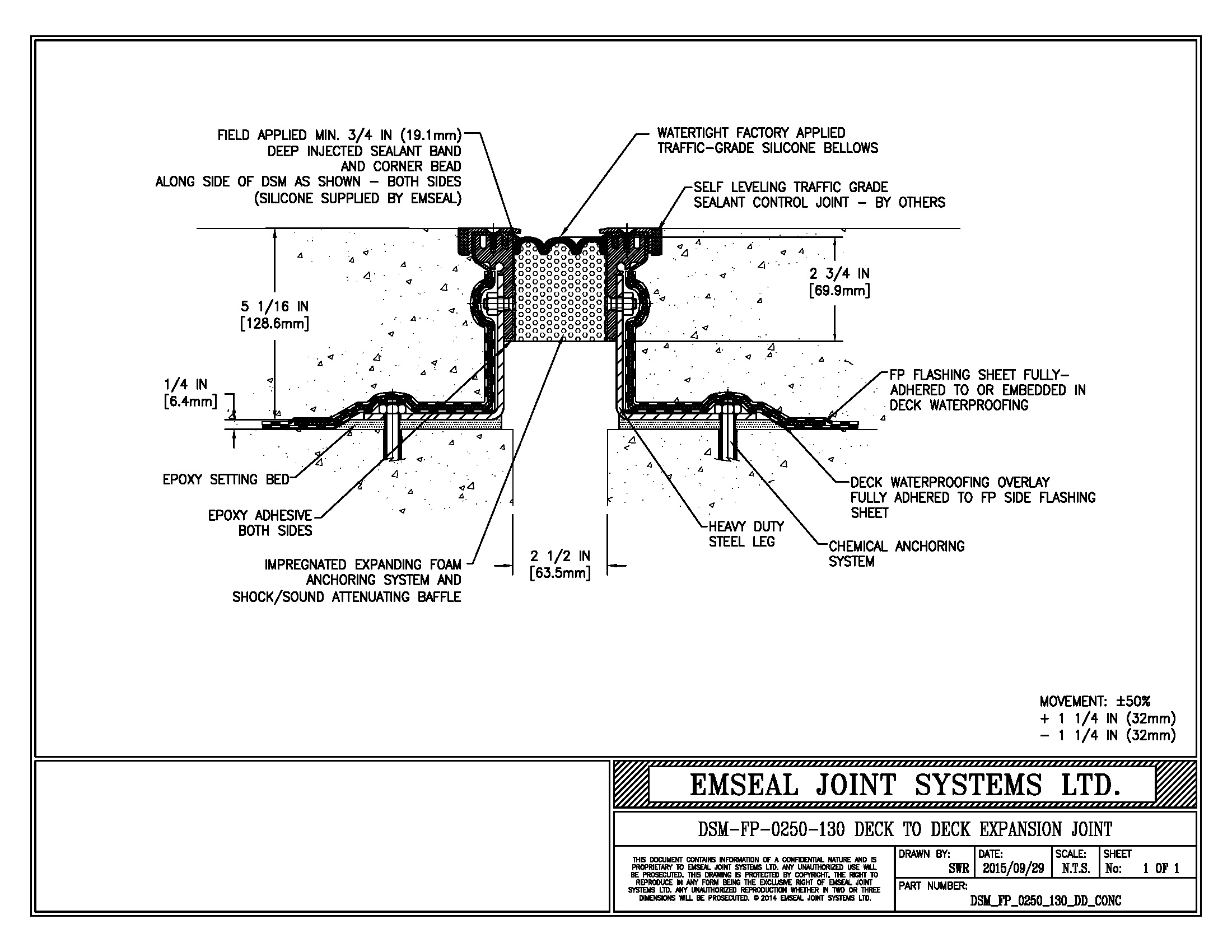

DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 2 1/2 inch | 65mm

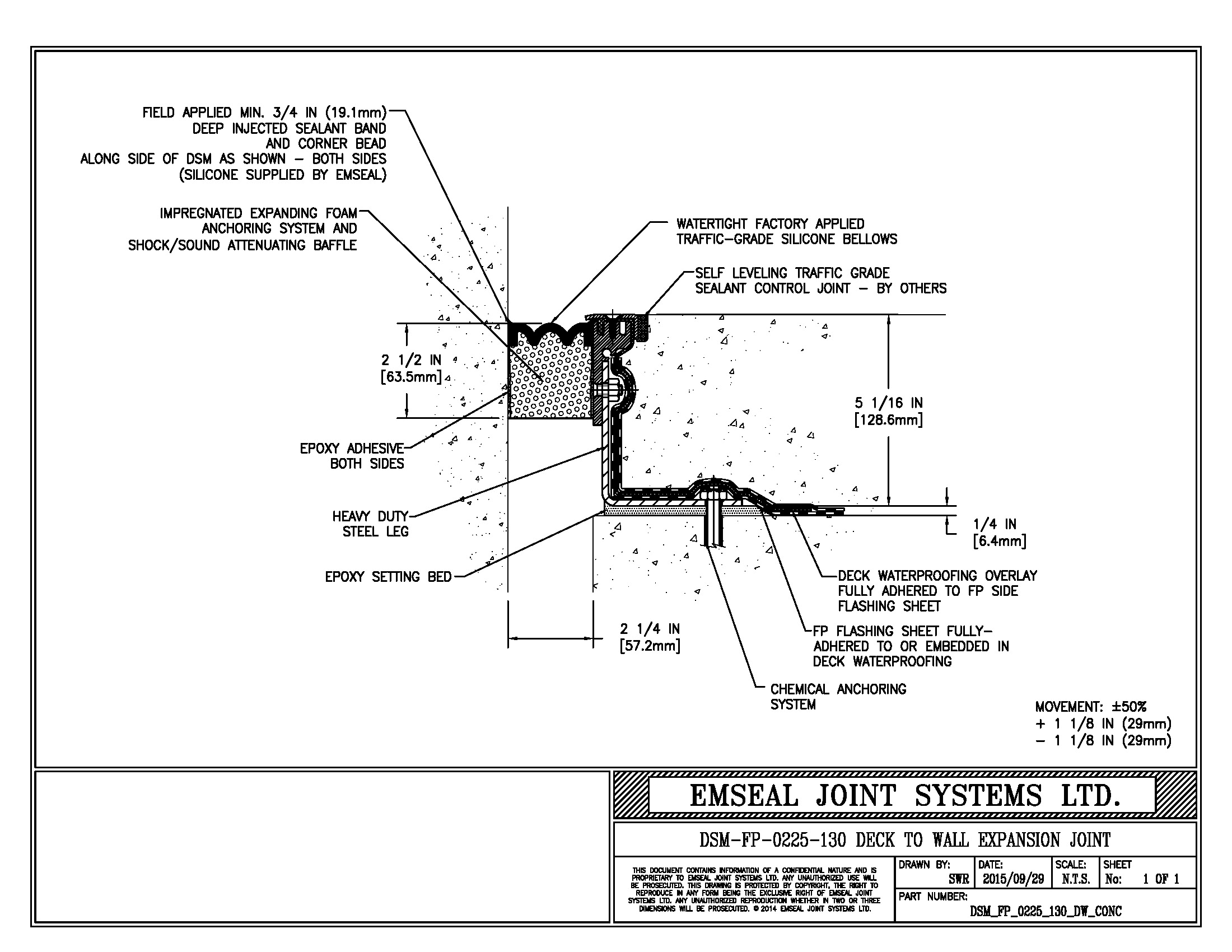

DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 2 1/4 inch | 55mm
DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 2 1/4 inch | 55mm
DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 2 inch | 50mm
DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 2 inch | 50mm
DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 1 3/4 inch | 45mm

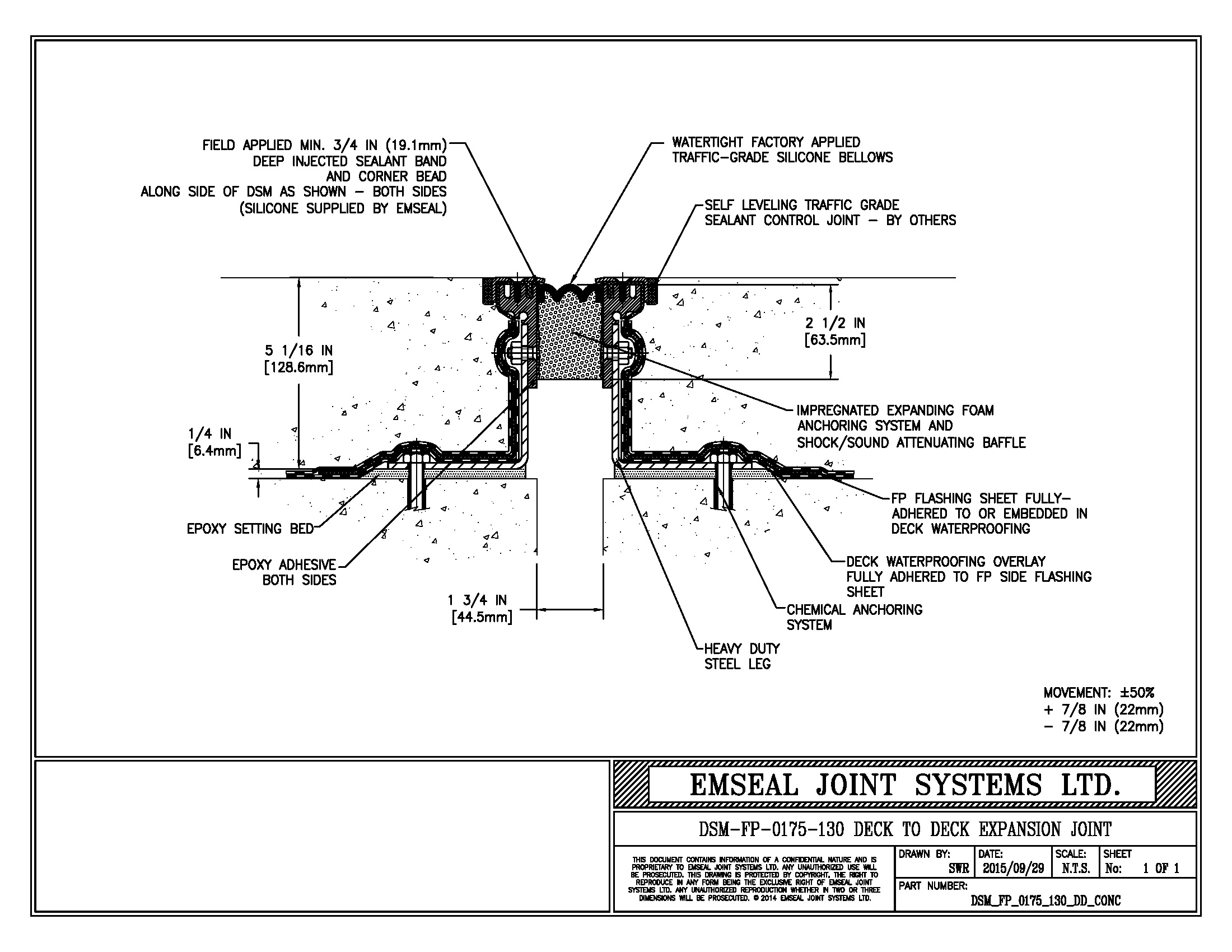

DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 1 3/4 inch | 45mm
DSM-FP System Deck-to-Wall Split Slab with 5 1/8 inch Leg Height 1 1/2 inch | 40mm

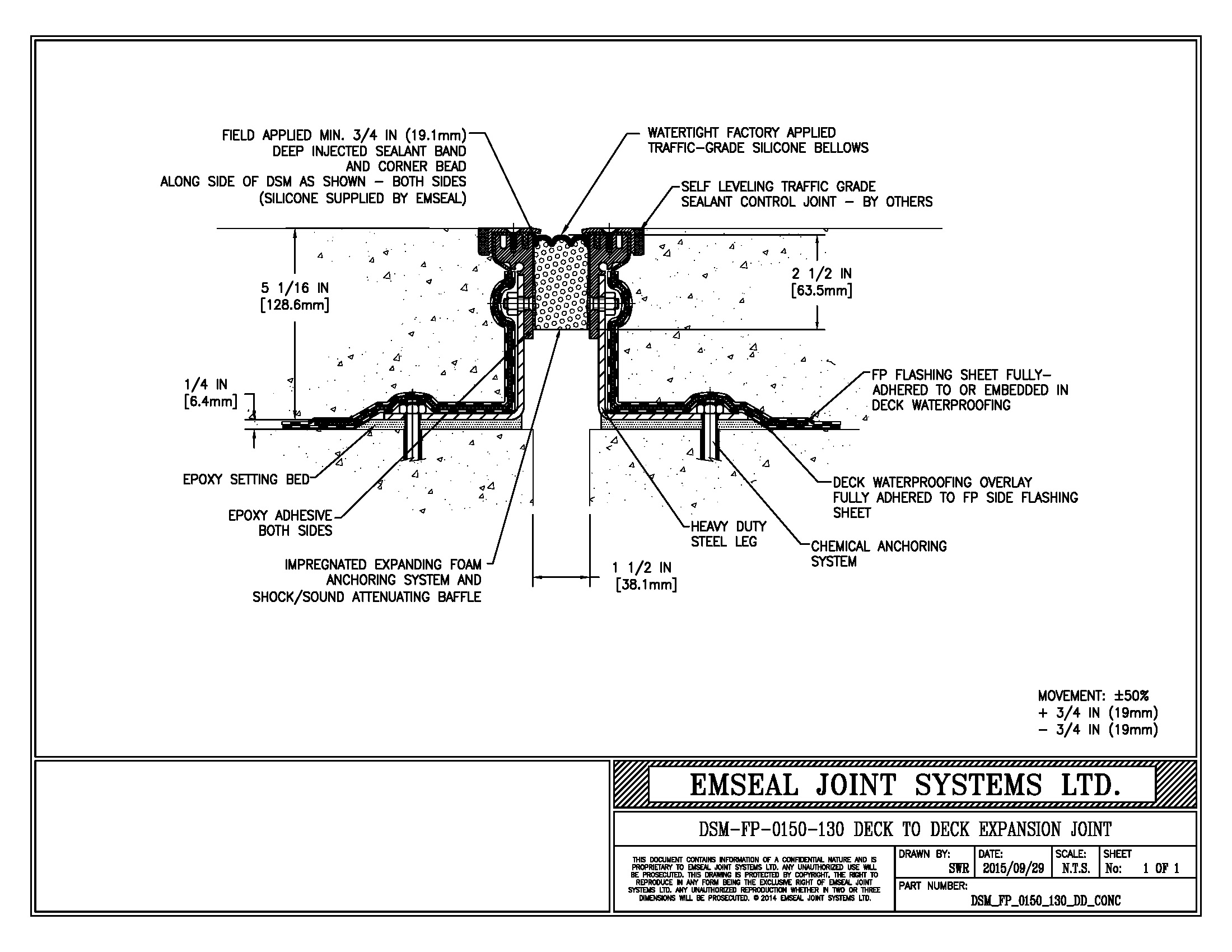

DSM-FP System Deck-to-Deck Split Slab with 5 1/8 inch Leg Height 1 1/2 inch | 40mm
Download DWF Viewer Here
NOTE: The CAD drawings on this site are generic and/or were created to treat project-specific conditions. They may or may not be suitable for your specific project or application. Please consult EMSEAL on the use of any material for any application. Thank you.
The following collection of details is being continuously updated and does not cover all possible conditions. If you don’t see something that closely suits your application, please contact us.
These drawings are intended for use during the specification of EMSEAL products in legitimate Architectural, Engineering and Construction applications. Any misuse or duplication of these copyrighted details for any other purpose, will be vigorously prosecuted.
