Tennessee Titans Nissan Stadium used Sika Emseal expansion joints to retrofit failing and leaking original systems
Home  /  Projects  /  Tennessee Titans, Nissan Stadium, Nashville

Tennessee Titans, Nissan Stadium, Nashville

Tennessee

Date: 2015-2016, 2021 & 2022 Retrofit

Titans stadium seismic expansion joints by Emseal

Like many of Emseal’s stadium customers, the Tennessee Titans embarked on a staged retrofit using the various stadium expansion joints of Emseal to address a number of failing joint systems in critical applications in the concourses and the seating bowl.

Seismic Joint System (SJS) in Seating Bowl Structural Joints

Seating bowl seismic expansion joints by Emseal

SJS-FR in Concourses (Seismic Joint System Fire Rated)

SJS-FR in Titans concourses where fire rated expansion joint required

SJS-FR Concourse Column Transition

SJS-FR Concourse Column Transition

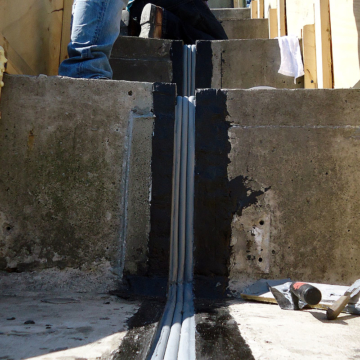

DSM System in Lower Seating Bowl Joints

DSM System with Emcrete nosing material in lower bowl joints

Products Used

Watertight Horizontal Expansion Joint - DSM System from Emseal

DSM System

NOTE: Wabo®HSeal (EH) will now be supplied as the DSM System. A watertight expansion joint, the DSM System is for use in horizontal-plane deck applications. Traffic durable, joint-face adhered and precompressed, DSM System is a primary seal for deck expansion joints. DSM’s…
DSM System Product Details

EMSEAL SJS Seismic Joint System watertight seismic deck or floor expansion joint

SJS-Seismic Joint System

A seismic expansion joint, the SJS System is watertight and features a trafficable cover plate that is not attached to the concrete deck. It is comprised of silicone-and-impregnated-foam hybrid components that ensure watertightness, absorb sound, dampen vibration and offer uncomplicated installation. Specify…
SJS-Seismic Joint System Product Details

Fire rated seismic expansion joint SJS-FR from EMSEAL

SJS-FR

A fire rated seismic expansion joint, SJS-FR1 (1-hour rated) and SJS-FR2 (2-hour rated) provide a watertight, fire-rated, trafficable joint system.  With SJS-FR One Install Does It All–Fire-Rated, Watertight, Traffic Bearing, 100% Movement, Quiet, Non-Invasive Anchoring, UL 2079 Certified for Decks and Floors.…
SJS-FR Product Details

Curtainwall expansion joint: EMSEAL SEISMIC COLORSEAL DS Double Sided Watertight Curtain Wall expansion joint seal

Seismic Colorseal-DS®

A curtainwall expansion joint, Seismic Colorseal-DS is a multi-faced, silicone-coated, precompressed, primary seal in structural, high-movement, joints in virtually any substrate. It is ideal for  curtainwall and other shallow substrates where sealing or finishing of both sides of the structure is desired.…
Seismic Colorseal-DS® Product Details
